Airglide Inflators

Industrial air blower

modulo-airglide

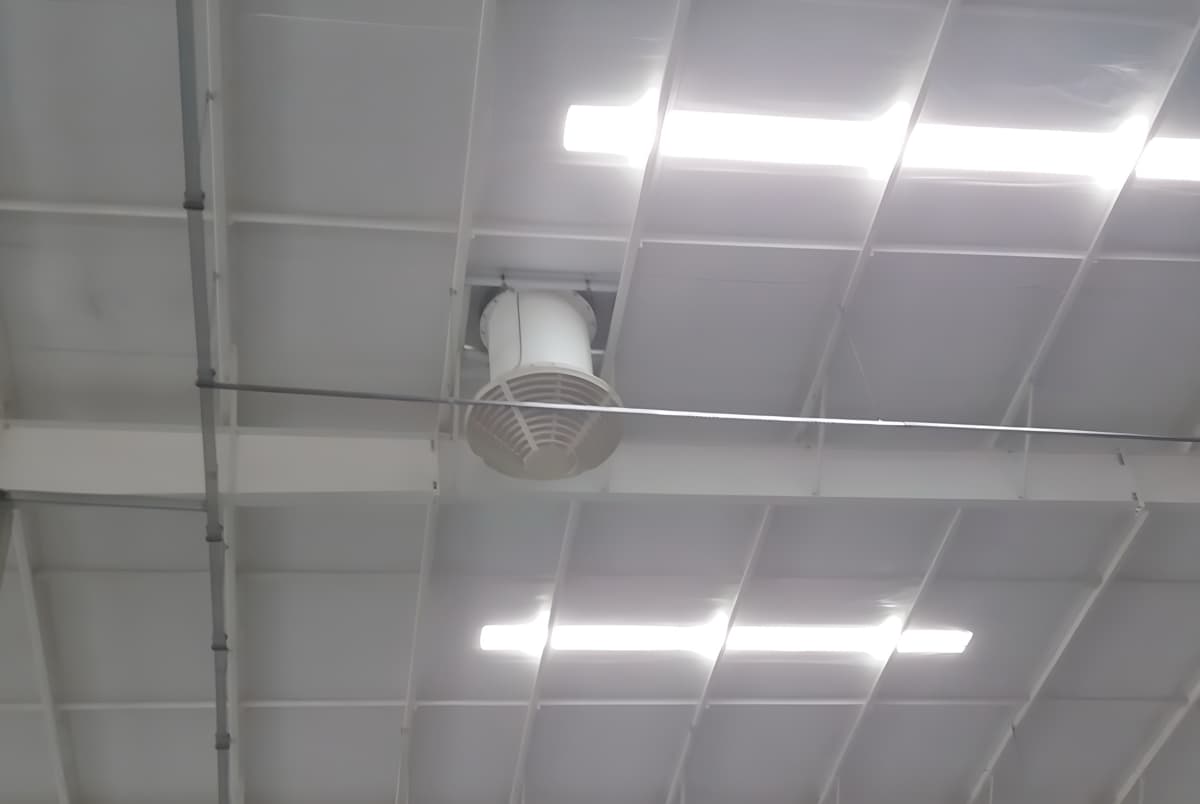

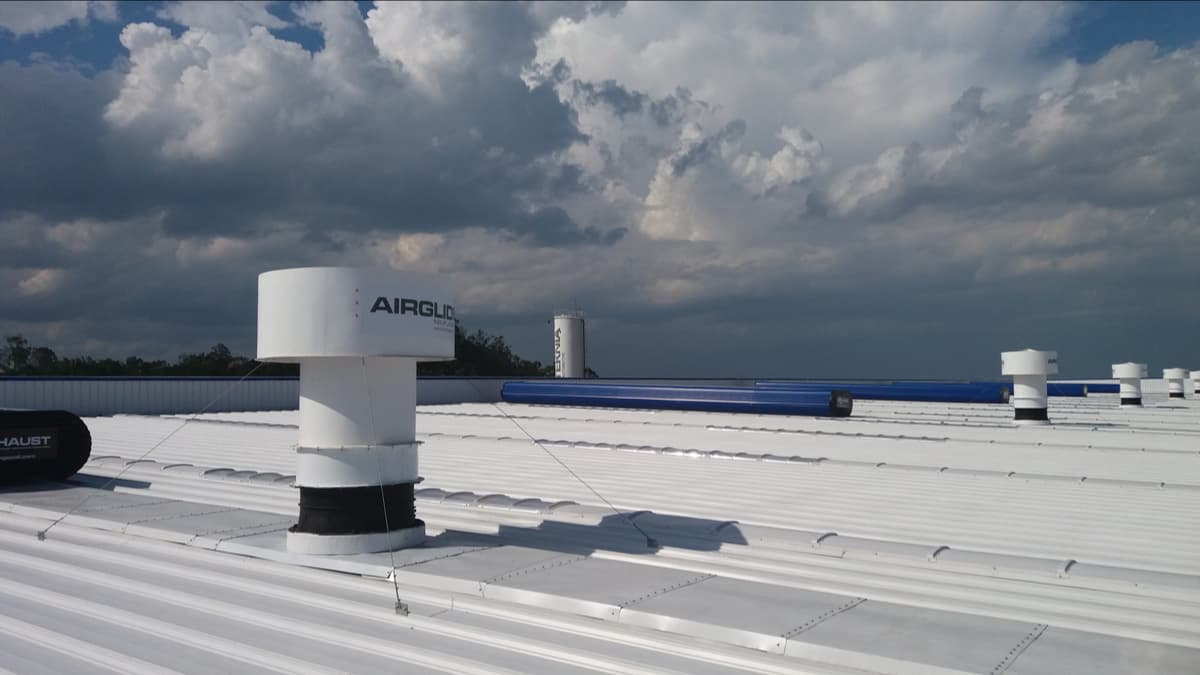

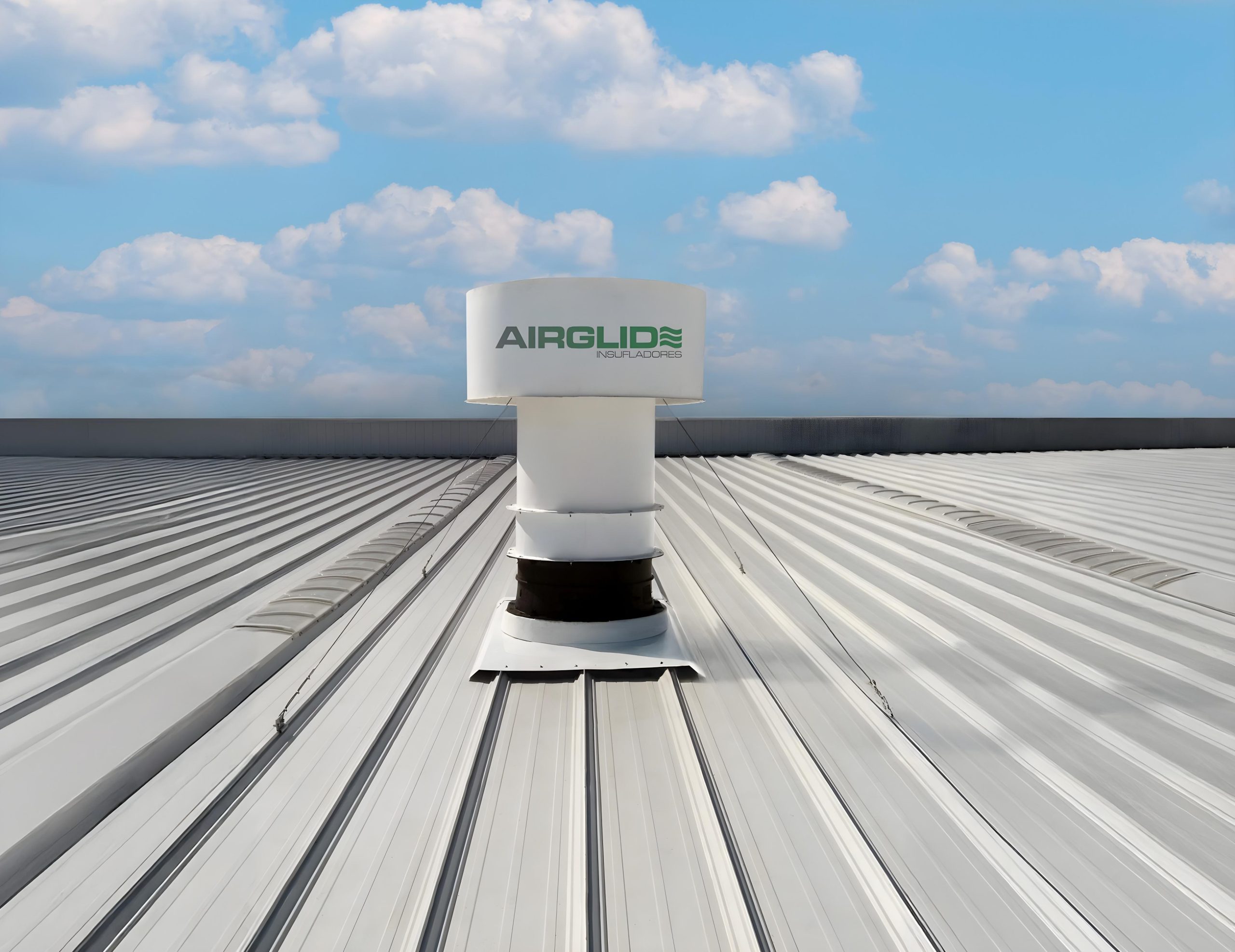

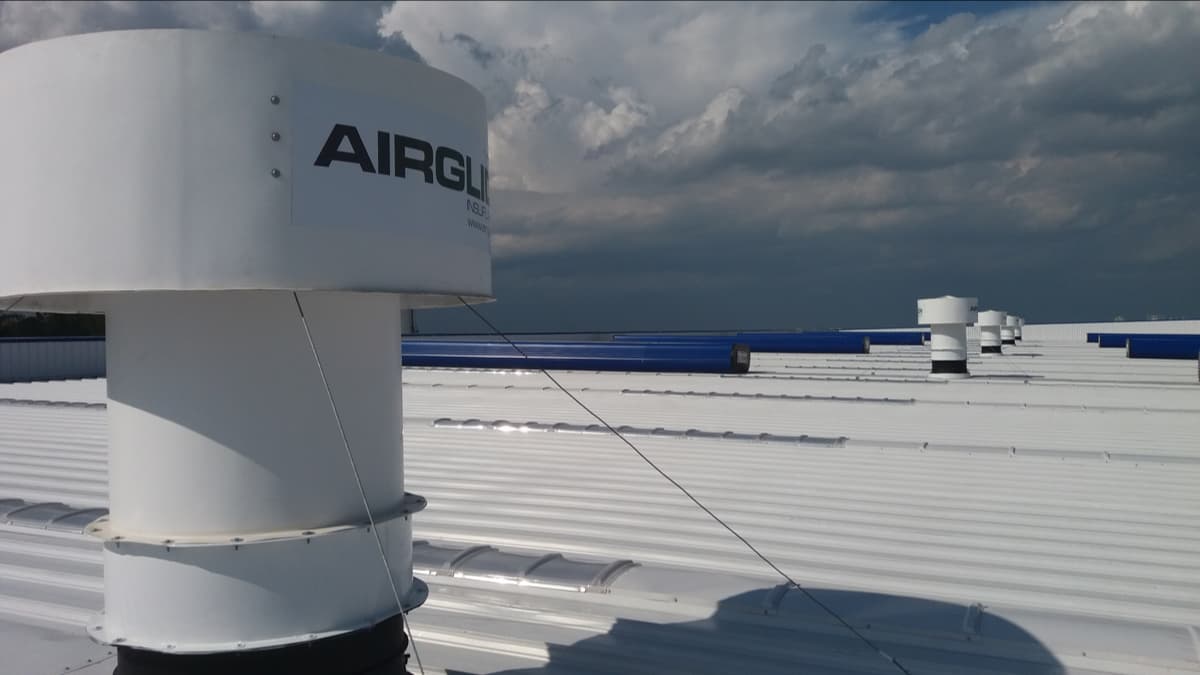

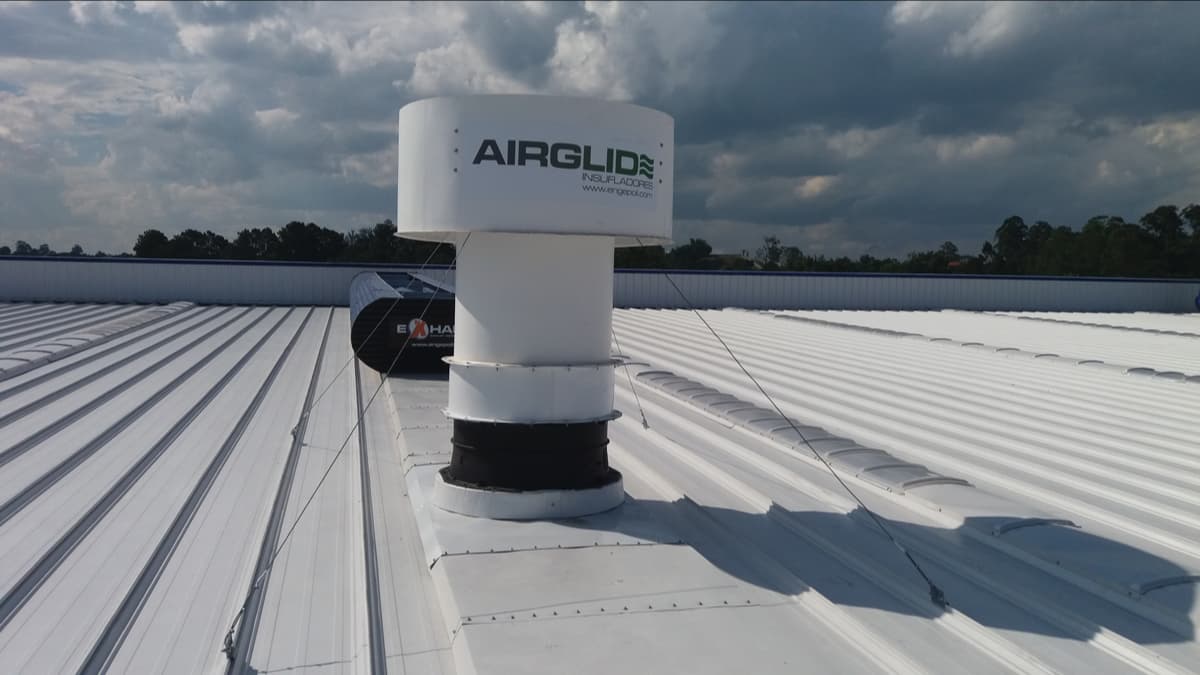

Airglide is Engepoli's forced ventilation system, designed to let fresh, clean air into industrial and commercial environments directly through the roof.

Ideal for places with insufficient ventilation, Airglide acts as an external air blower, guaranteeing thermal comfort, constant air renewal and greater indoor environmental control.

With a light and resistant structure, the system is fully adaptable to different types of roofs and slopes. It is suitable for both new projects and retrofit work, without compromising the building's operation.

Made from highly durable components, Airglide is sized according to the needs of each project and is available in versions with flow rates of up to 45,000 m³/h.

Airglide brings numerous benefits to various types of buildings:

Sheds

Continuous air renewal, ideal for large openings where hot air and impurities accumulate easily.

Industries

Efficient forced ventilation, without interfering with production processes or the control of internal contaminants.

Commercial environments

Thermal comfort in high-traffic areas such as supermarkets, gyms and distribution centers.

Features

Airglide promotes the supply of clean, fresh air, optimizing indoor air quality and complementing natural ventilation systems.
Forced Air Inflation

It promotes the active entry of fresh air into the room, improving circulation and ensuring the continuous renewal of indoor air, essential in industrial or commercial spaces with low natural ventilation.

High Performance at High Flow Rates

Available in models with flow rates from 15,000 to 45,000 m³/h, Airglide caters for projects of different sizes with excellent performance in renewing large volumes of air.

Highly efficient and reliable motor

Equipped with a 4 kW three-phase motor (380-480 V / 60 Hz), coupled directly to the propeller, Airglide guarantees continuous operation with low consumption and high energy efficiency.

Lightweight and sturdy structure

Made with a fiberglass fairing and metal structure, the system combines lightness with high durability, allowing installation without the need for structural reinforcements to the roof.

Compatibility with different types of cover

It can be installed on new or existing roofs, adapting to any roof profile and slope, making it ideal for retrofitting or industrial extensions.

Optional Air Filtration

It can be equipped with G0 to G3 filters for particle retention, helping to improve air quality, especially in environments that require contamination control.

Specifications

Airglide can operate continuously without compromising the performance of the roof and without excessive noise.
  • Structured in steel and fiberglass.
  • Propeller.
  • Electric motor, three-phase, 4 kW, 380-480 V / 60Hz with direct coupling to propeller.
  • Type GO to G3 filters for the food industry.
  • Dampers to prevent the transfer of vibrations to the roof.
