The Skylux System allows for an even distribution of light, eliminating shadows and reducing the need for artificial lighting during the day. This feature improves visual comfort and the well-being of occupants, as well as complying with the strictest engineering standards.
Ideal for industrial warehouses, logistics centers and other buildings seeking energy efficiency. It also contributes to the sustainability of the project, helping to reduce the building's carbon footprint.

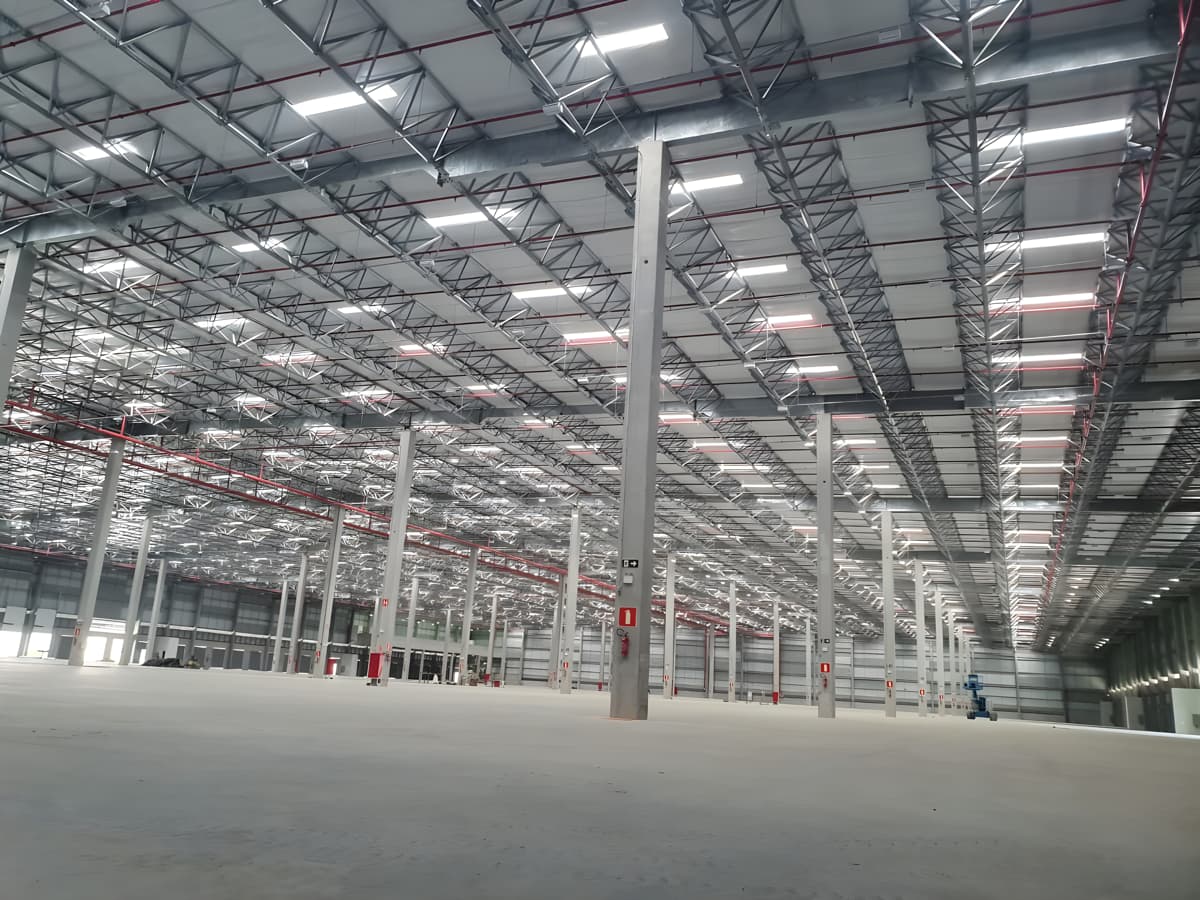

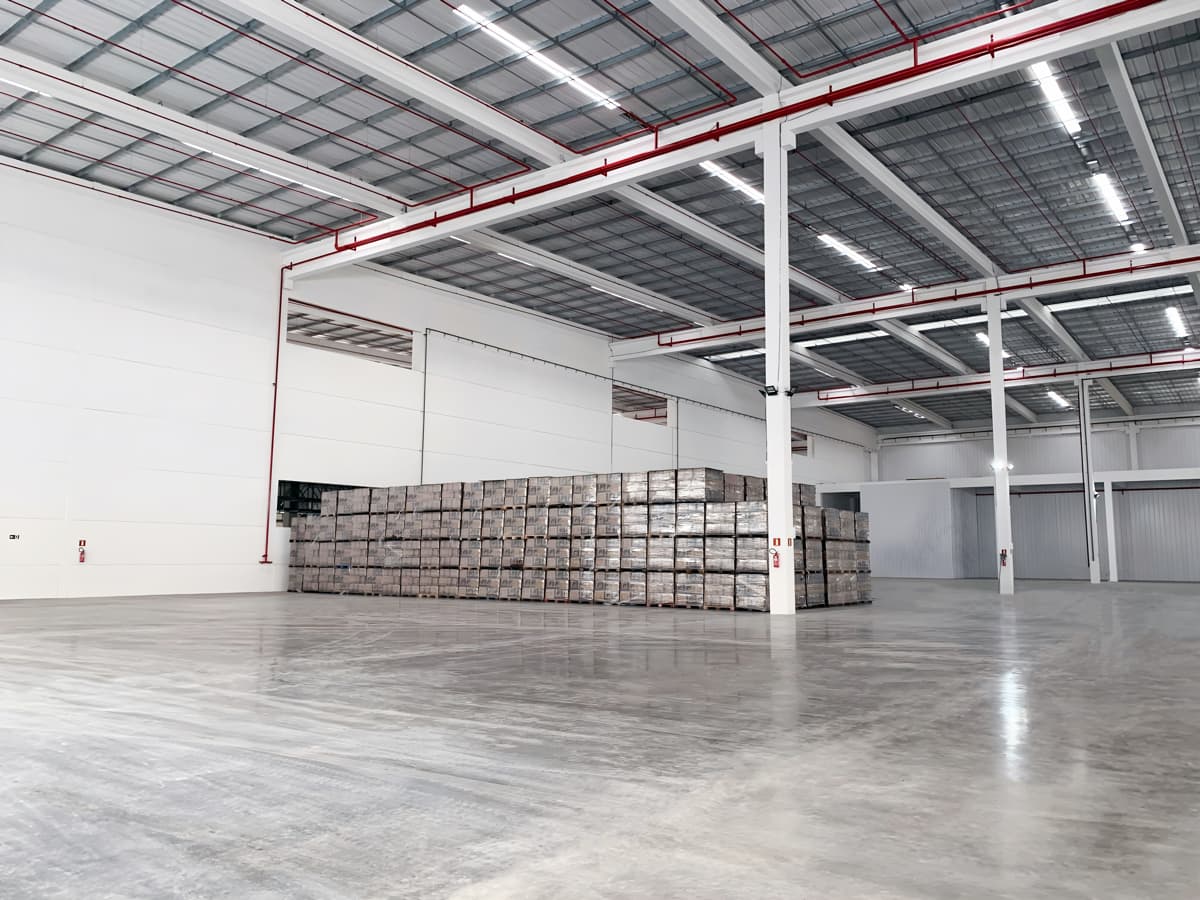

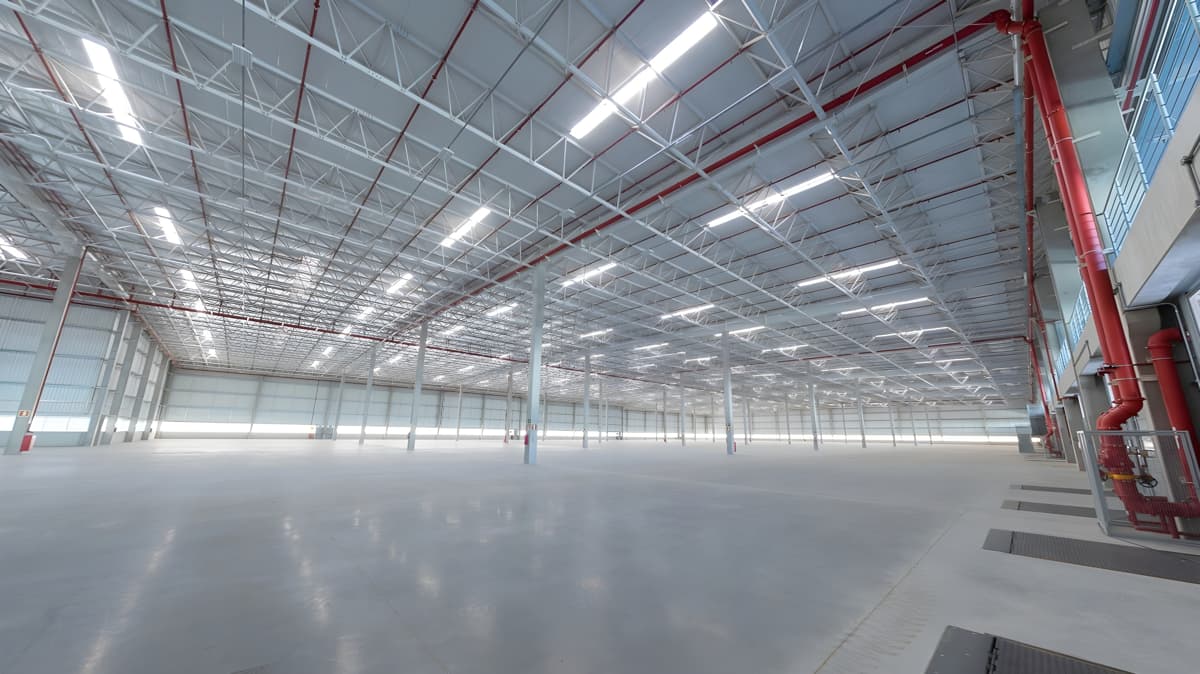

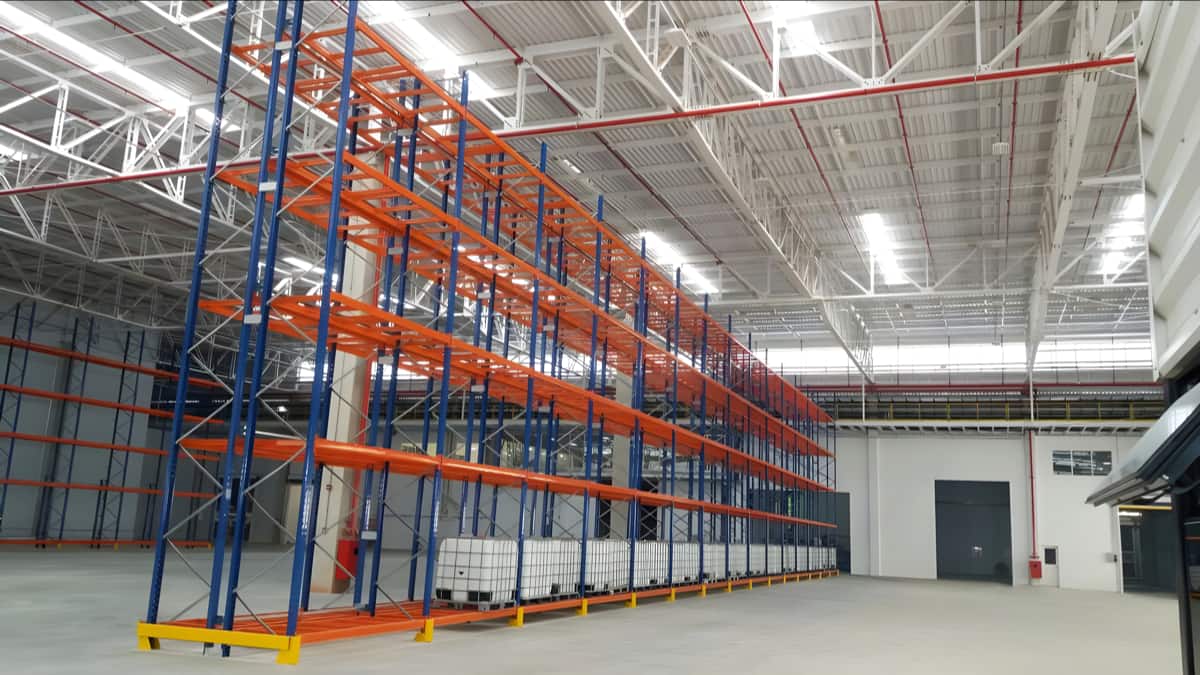

Optimizing natural light in large spaces, such as warehouses and logistics centers, where artificial lighting can be expensive and less efficient.
Ensuring adequate lighting in production and assembly areas, where visibility is crucial for safety and efficiency.

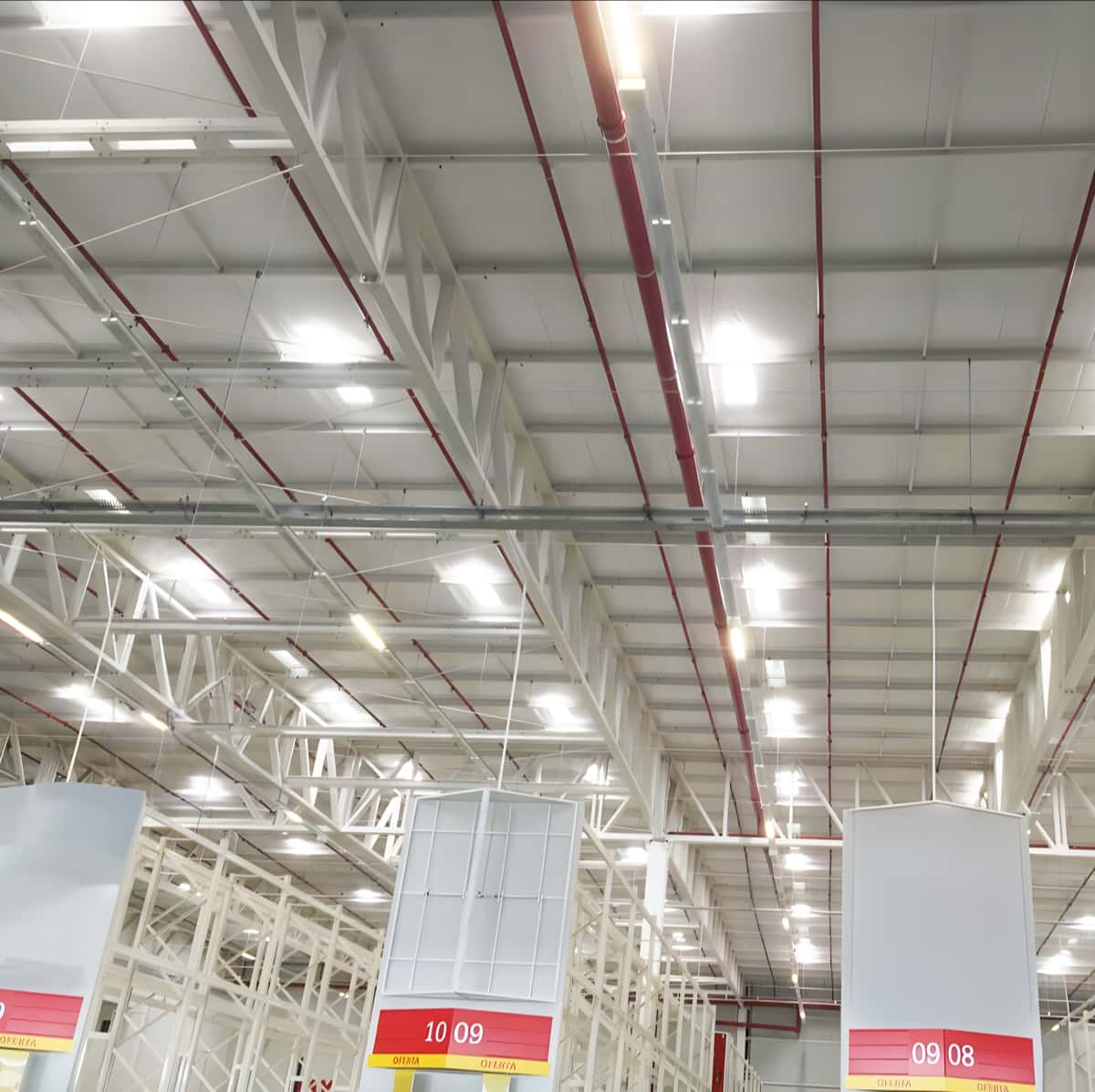

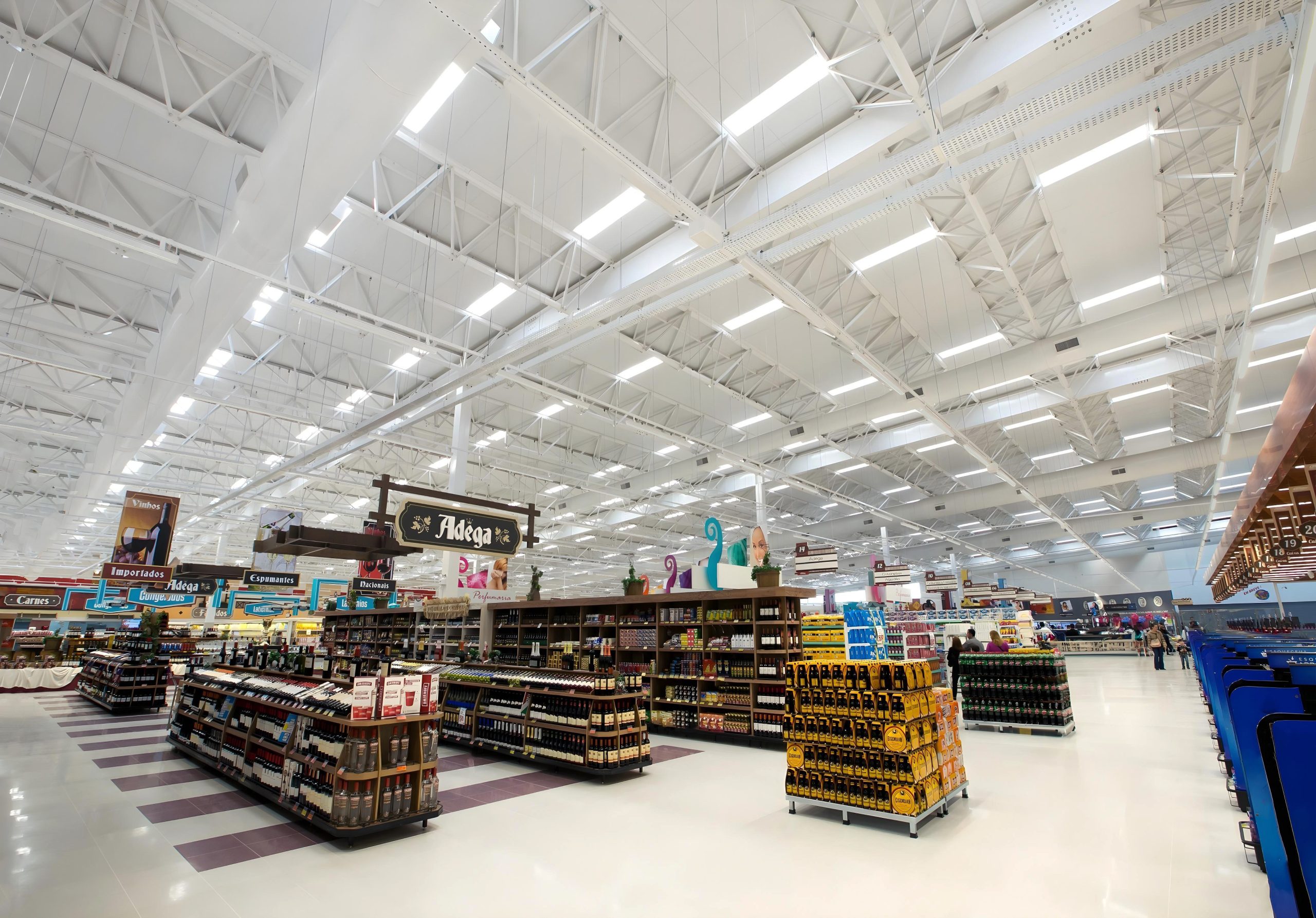

Improving lighting in supermarkets, wholesalers, stores, offices and other commercial spaces to create a pleasant and attractive environment for customers and employees.
Maximum diffusion of natural light, eliminating shadow spots and providing homogeneous natural lighting.
Flame protection Class B-s1, d0, according to EN 13501: 2007 + A1: 2009. This ensures that, in the event of a fire, the material will help slow down the spread of fire.
Made from materials that block ultraviolet (UV) radiation, protecting occupants and interior materials from the harmful effects of prolonged exposure to the sun. It also prevents premature yellowing.
Solar heat gain coefficient of 0.49, minimizing heat transfer, reducing the need for cooling and cutting costs.

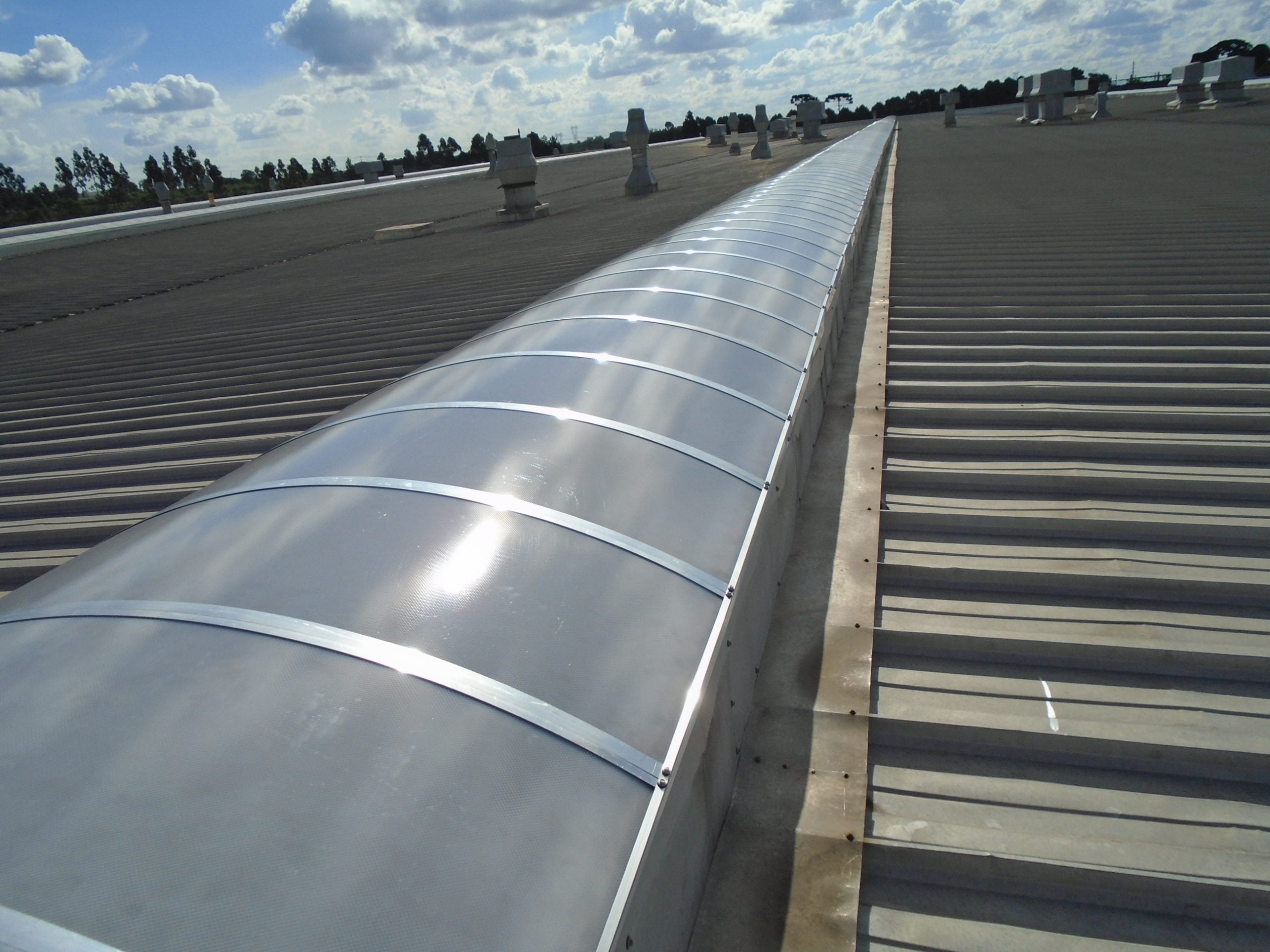

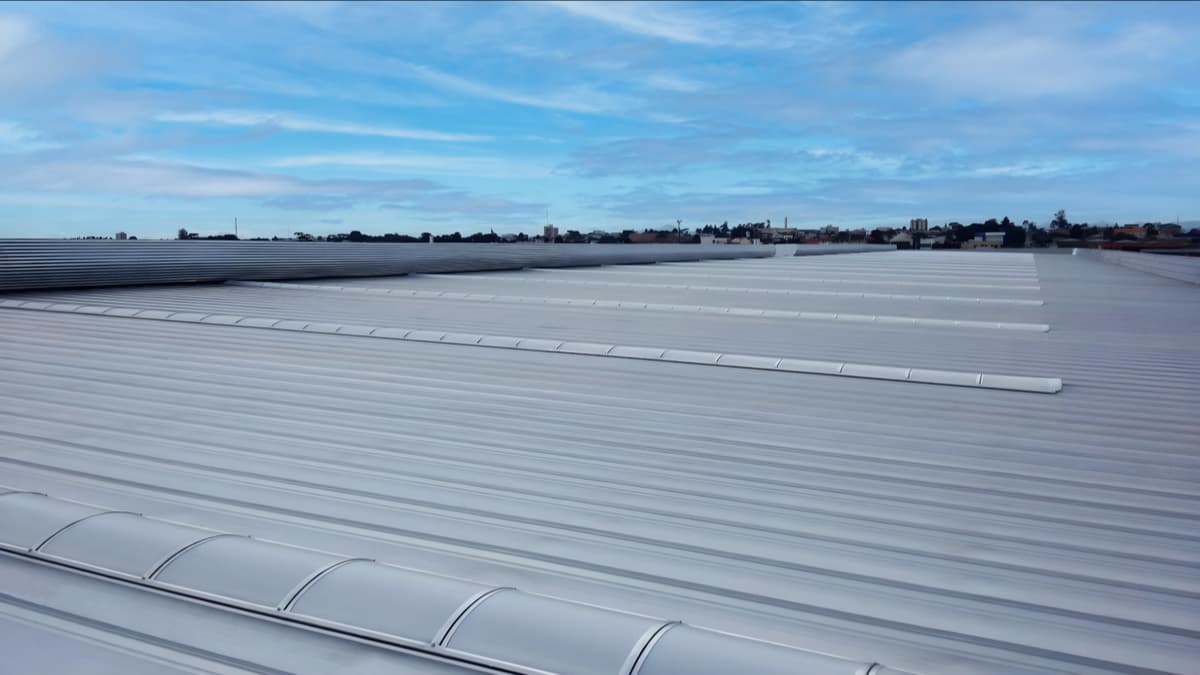

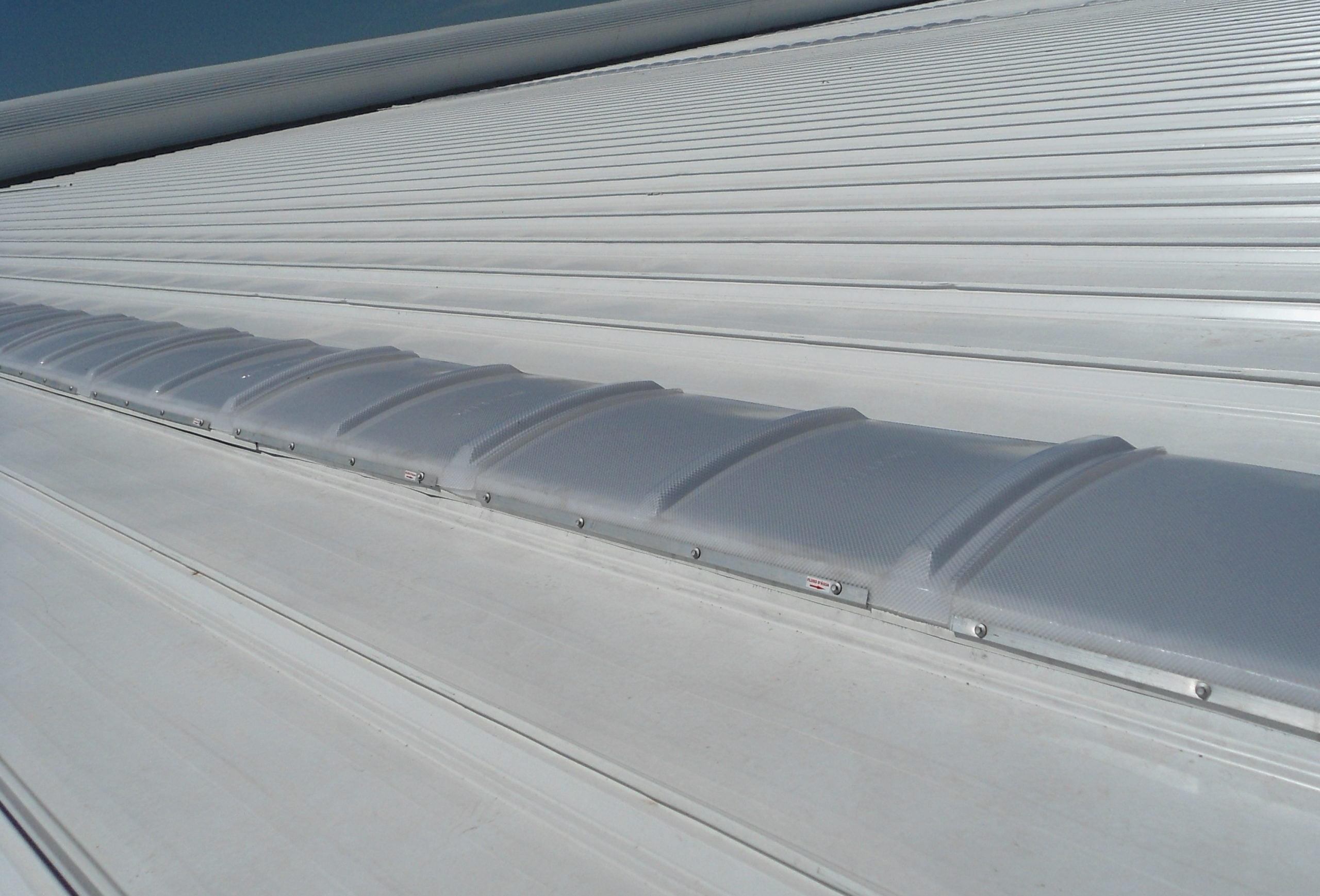

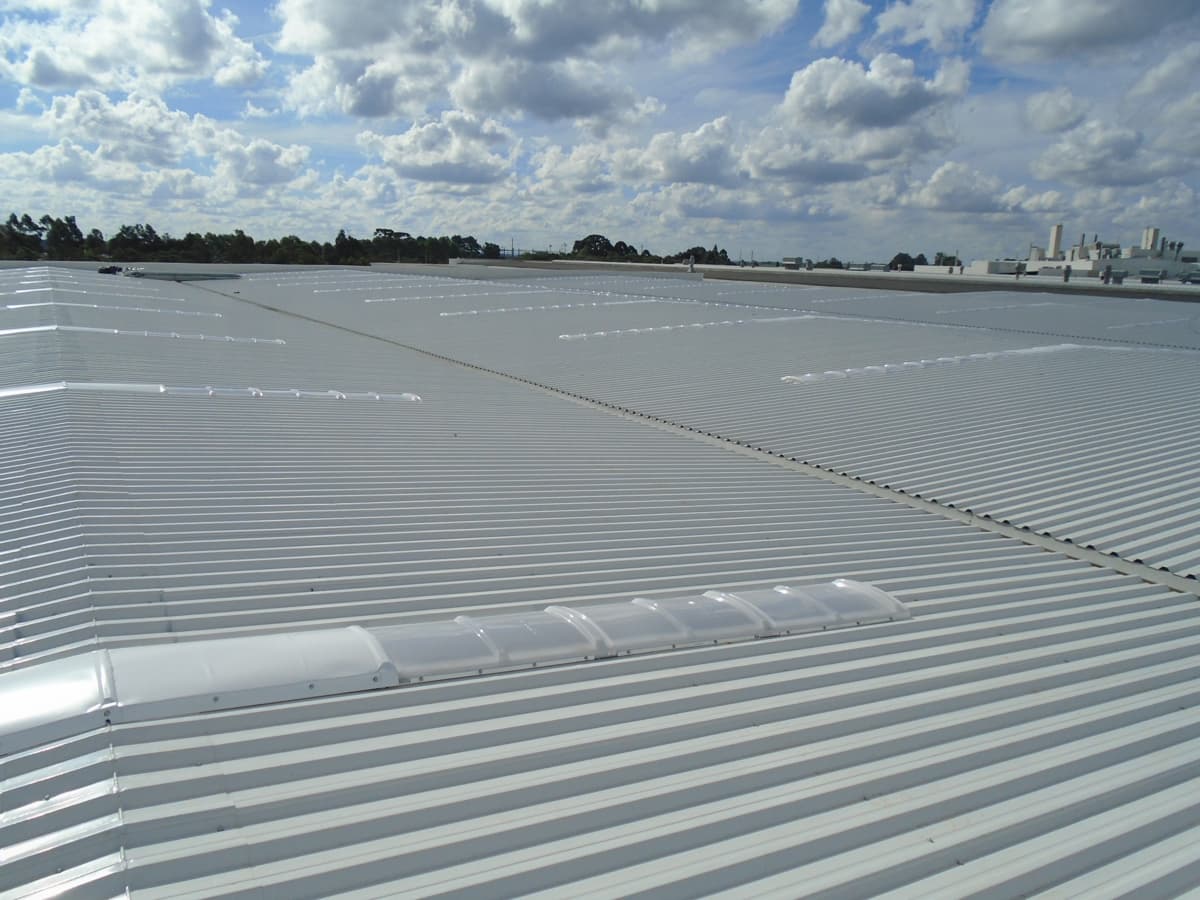

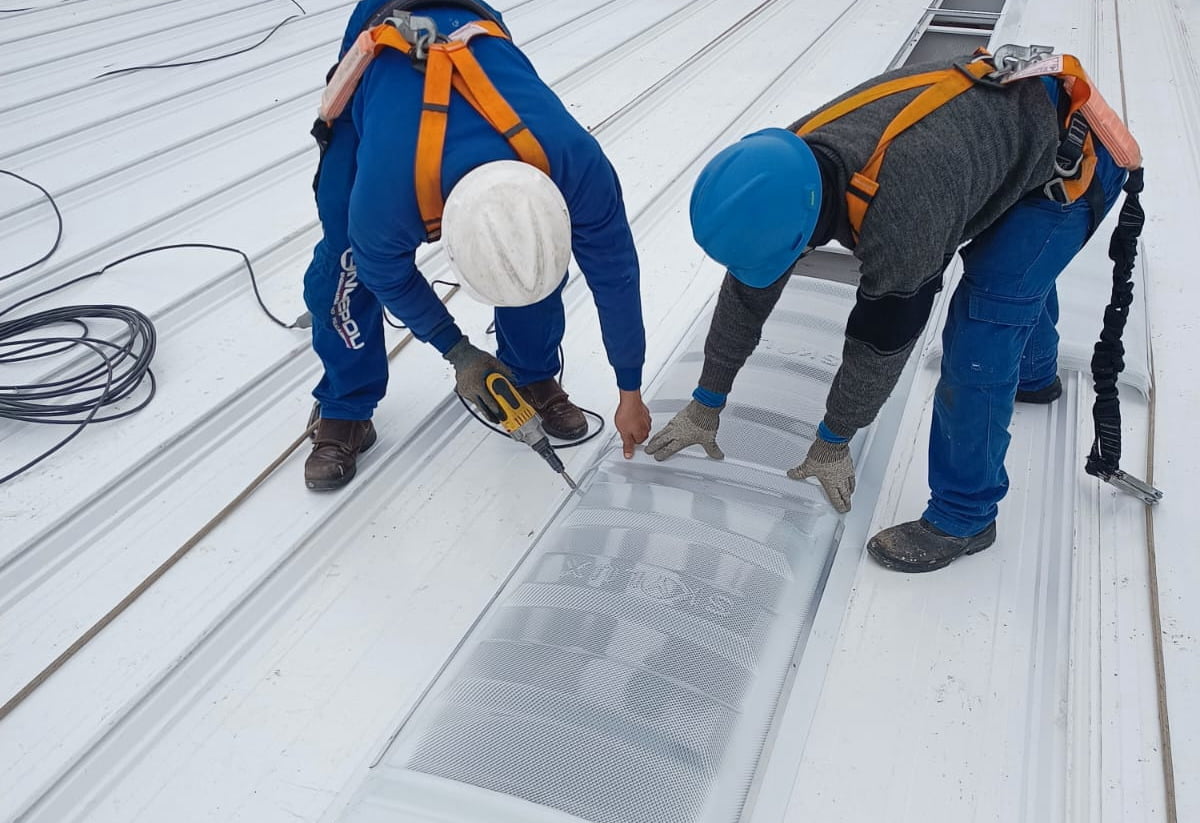

Installed on the structural purlins, it adapts to any type of roof tile, guaranteeing quick assembly without compromising the integrity of the roof. They can be installed with strip lines or modular lines.
It complies with the standards that define minimum requirements for lighting in indoor workplaces, ensuring quality, safety and efficiency in natural lighting.
High mechanical resistance, superior to materials such as acrylics and fiberglass. Withstands the harshest weather conditions, guaranteeing durability and a long service life.
Low maintenance requirements, which reduces operating costs and facilitates system management.
With a VLT index of 80%, our dome guarantees excellent natural lighting, reducing the need for artificial lighting and promoting brighter environments.
| Model | Dimension (mm) | Inches | Material | U-Value | UV protection |
|---|---|---|---|---|---|
| 444 | 444 x 1100mm | 17"1/2 x 43" | NanoPrismatic PC | 4,470 W/m² K | > 99% |
| 555 | 555 x 1100mm | 21"3/4 x 43" | NanoPrismatic PC | 4,470 W/m² K | > 99% |
| 777 | 777 x 1100mm | 30"1/2 x 43" | NanoPrismatic PC | 4,470 W/m² K | > 99% |
| 1111 | 1111 x 1100mm | 43" x 43" | NanoPrismatic PC | 4,470 W/m² K | > 99% |
| 555 LD | 555 x 1100mm | 21"3/4 x 43" | NanoPrismatic PC + Crystal PC | 1,475 W/m² K | > 99% |
| 777 LD | 777 x 1100mm | 30"1/2 x 43" | NanoPrismatic PC + Crystal PC | 1,475 W/m² K | > 99% |
Skylux Ultra is the daylighting solution from Engepoli that has been awarded the FM Approved international certification by FM Approvals, a division of FM Global. This achievement positions the product as one of the safest, most efficient and reliable options on the market for industrial and commercial projects.
With state-of-the-art NanoPrismatic technology, Skylux Ultra provides high light diffusion without glare or heat concentration, ensuring visual comfort and energy efficiency in large spans such as warehouses, logistics centers and factories. Its high-strength polycarbonate composition offers UV protection of over 99%, durability against the elements and excellent thermal performance.
The FM Approved certification certifies that Skylux Ultra has undergone rigorous resistance, durability and fire safety tests, giving the product an important competitive edge for buildings that demand the highest international standards, including the possibility of a reduction in insurance premiums.
More than natural lighting: with Skylux Ultra, you specify safety, proven performance and sustainability for your project.
The SkyActive solution integrates the natural lighting of the Skyluxsystem, with high-diffusion prismatic domes, with dimmable dimmable LED luminaires with illuminance sensors (LUX).
This hybrid system automatically adjusts the intensity of the artificial light according to the variation of natural light in the room, guaranteeing the ideal level of illuminance for each type of application, according to the lighting design.
In addition to reducing electricity consumptionthe system provides constant visual comfort and takes advantage of natural light with IRC 100ideal for industrial, logistics and commercial environments. It is an intelligent solution for sustainable projects, contributing to certifications such as LEED.

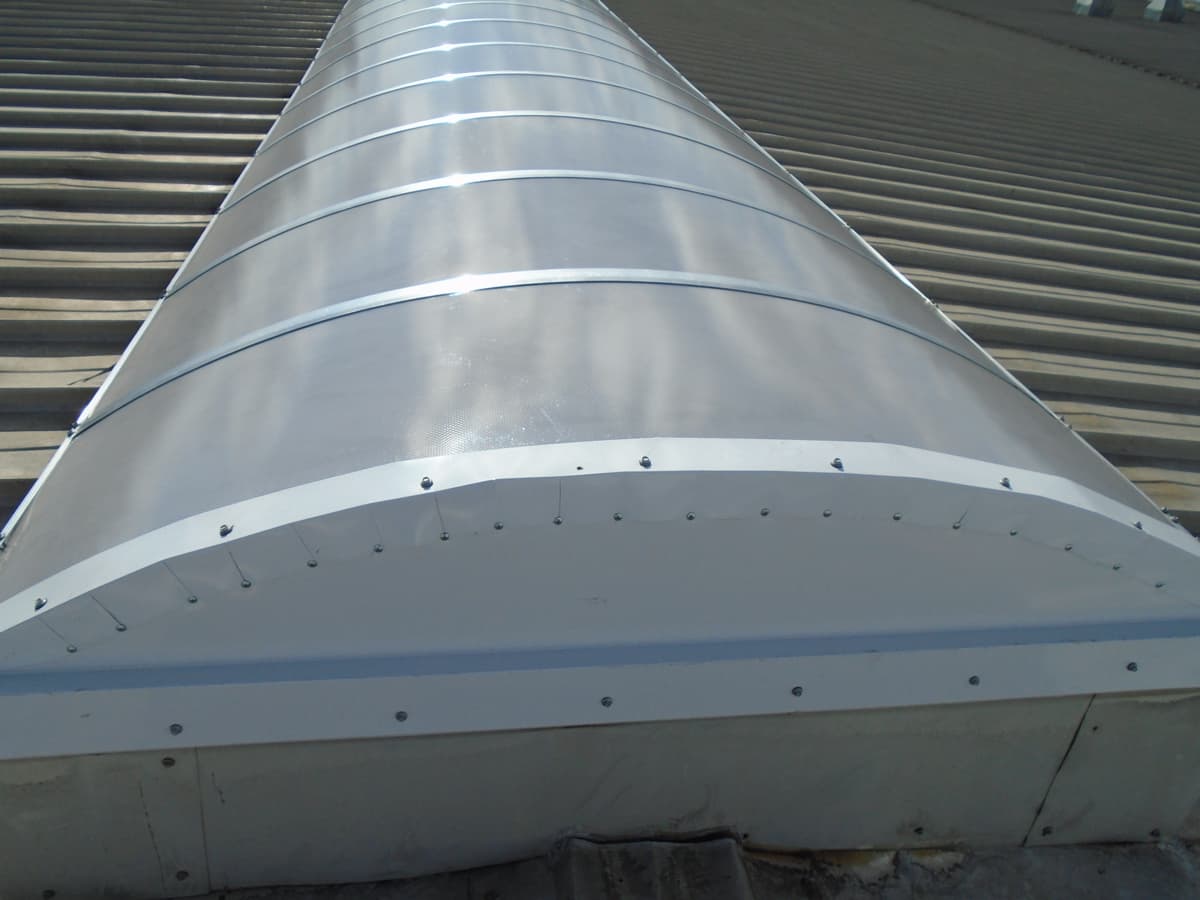

This solution in double or single lens NanoPrismatic Polycarbonate, in the 4’x 8′ format, has arrived bringing even more innovation to the market.
It is a product with high mechanical resistance and also flammability, as it is made of self-extinguishing material, unlike those on the market made of acrylic, which break easily and spread fire.
The main use of this equipment is to retrofit previously installed products
, which are generally inferior. With great resistance and a high rate of natural light diffusion, it is the ideal equipment to be installed in ROOF CURB’S for TPO membranes.
Skylux W is made of NanoPrismatic polycarbonate, guaranteeing an impressive 80% light transmission. This innovation from Engepoli stands out for its superior durability, especially when compared to traditional fiberglass systems.
The unique light diffusion feature allows the pieces to overlap, creating long lines of natural light and illuminating large spaces effectively.
Designed to fit perfectly with prestressed concrete W tiles, Skylux W is also an excellent choice for retrofitting. With carefully developed finishes, the product ensures total watertightness, including headers for the start and end of the line, as well as intermediate overlays.
O Skylux Energy combines natural lighting and solar energy generation in a single system, ideal for industrial warehouses and logistics centers. With diffusing NanoPrismatic lens e high-efficiency photovoltaic cells (up to 21%)it guarantees optimized capture of sunlight, even on cloudy days, reducing electricity consumption and improving thermal comfort.
The system is adaptable to any type of roofhas patented design and has software for customized projects and performance monitoringmaximizing the return on investment.
